Description

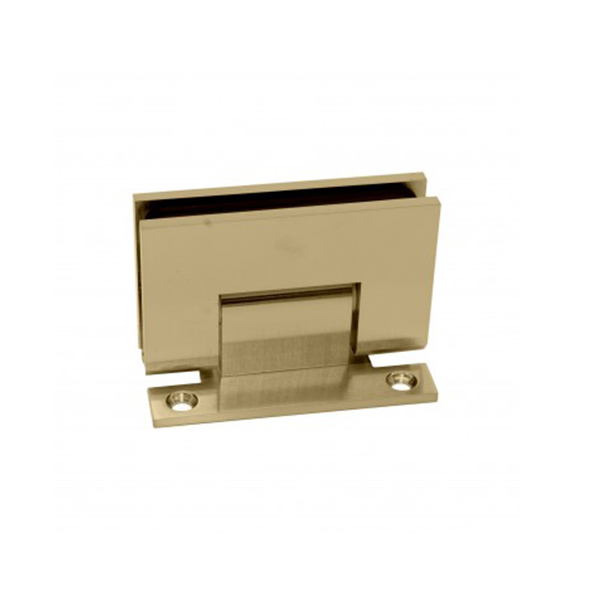

The BBAHI Hardware S037SB Georgian Satin Brass Square Wall Mounted Split Back Plate Geneva and Glendale Style of professional Hinges is able to accommodate 5/16″ (8 mm) to 1/2″ (12 mm) glass. A variety of six styles gives design flexibility, including three different Wall Mount and three different Glass-to-Glass types. Geneva Hinges are self-centering. In addition, Custom Pivot Pins are available to accommodate “off-angle” installations. Made of solid brass with all moving parts (pins and springs) in stainless steel.

Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the BB Hardware Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for BB Hardware hinges may not match those of other brands.

• Self-Centering
• Use Monolithic Tempered Glass
• Three Year Warranty
• Wall Mount Full Back Plate Standard Model (Factory Set for Standard Closing Position)
• Reversible 5 Degree Pivot Pin Available with our “Premium” Series

Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) are available to accommodate “off-angle” installations. If the 5 Degree Reversible Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degrees). If using the Custom Pivot Pin, contact our Technical Sales Shower Door Department. Your glass sizes and the aesthetics of the enclosure may be affected by the use of the Custom Pivot Pin.

Using two hinges with 5/16″ to 1/2″ glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28″ (711 mm).

Using three hinges with 5/16″ to 1/2″ glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32″ (813 mm).

SPECIFICATIONS:

Glass Thickness: 5/16″ (8 mm) to 1/2″ (12 mm) Tempered Safety Glass

Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position, or 5 degree Pre-Set Model for tighter closure into shower interior.

Construction: Solid Brass

Hinge Swings: 90 degree in and 90 degree Out

Closing Type: Self-Centering when within 15 degree of Closed Position

Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16″ (8 mm) thick tempered glass.

Custom finishes are available on request.

C.R. Laurence Geneva GEN037SB Type

FHC-USA Glendale GLENF1SB Type
