Description

Our BB Hardware Square Wall Mount Clamp (Hole-in-Glass Style) mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. Clearance between the glass and wall is 3/16″ (5 mm). Clear silicone can be used to provide a clean, water-tight seal.

Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures

A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an ‘All-Glass’ Look

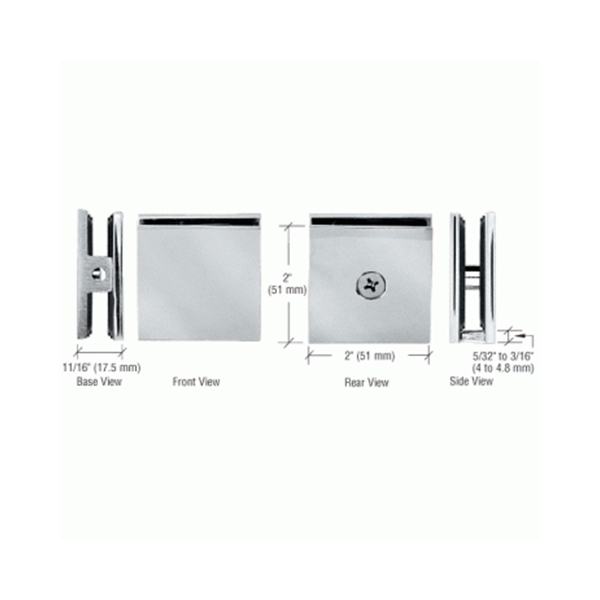

Width:    2″ (51 mm)

Height:    2″ (51 mm)

Glass Fabrication Required to Accommodate Clamp

Use Monolithic Tempered Glass

SPECIFICATIONS:

Materials: Solid Brass

Glass Thickness Range: 3/8″ to 1/2″ (10 to 12 mm)

Glass Fabrication Required: Require 3/4″ (19 mm) Hole

Includes: Mounting Screws and Gaskets

C.R. Laurence SCU4BN Type

FHC-USA CSU4BN Type
